RAW, JPG, and TIFF, Oh My.... : Jared as Creative Director of New Media
So I have been working on a project involving a digital camera and the great debate has come up on what image file format to use.
I am working with a Canon XSi that can shoot in RAW + JPG mode.
Regretfully the software I am using can't save the RAW files so the best we can get is the highest quality JPG files from the camera (the RAW files just vanish).
Now while this might be good enough it does bring up the question:
What are we losing?
So let's take a minute to compare what is going on.
The RAW file is 13.7MB vs the JPG which is 2.2MB.
Now its not really fair to compare RAW to JPG because RAW really isn't an image file - its a data format that requires a user to make a decision about its white balance and color space.
But let's say for a moment that we used the default settings (the ones that the JPG used) and then saved it as a 'gasp' uncompressed TIFF.
Now we see that the TIFF is 35.6MB vs the JPG which is (still) 2.2MB.
This is still comparing apples and oranges though. The question I like to ask is what would happen if we took that TIFF and saved it as a JPG quality 12 which is virtually lossless.
Now we find that the JPG12 (from the TIFF from the RAW) is 4.6MB while the JPG from the camera is (still) 2.2MB.
That is a lot of data there and worthy of concern.
Running a difference layer mask allows us to see the visual differences between the two images.
We can exaggerate them using the equalization adjustment.
Our original photo:

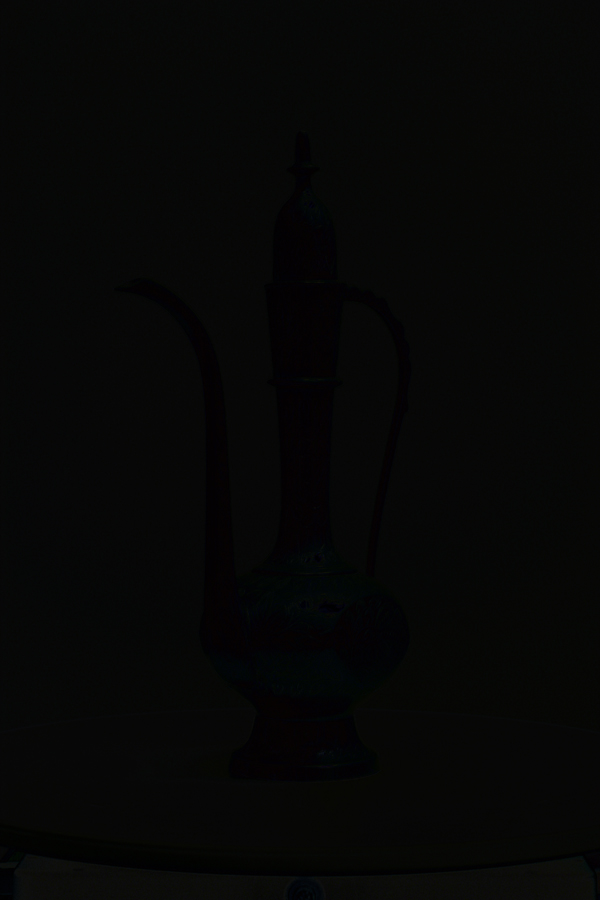

Difference Mask of the JPG Created by the Camera to the JPG Created from the TIF (from the RAW). Note that the differences are visible with the naked eye - there is significant data loss:

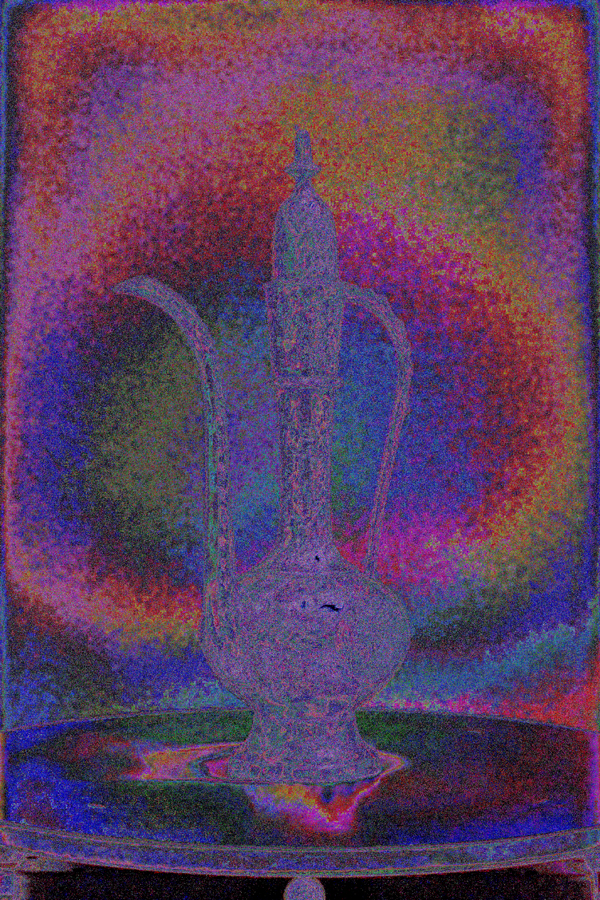

If we equalize this image we get a clearer picture of the data missing from the original:
While it is clear that the JPG from the TIFF is better than the JPG from the camera, what about the difference between archiving the TIFF vs archiving the JPG quality 12 of the TIFF.

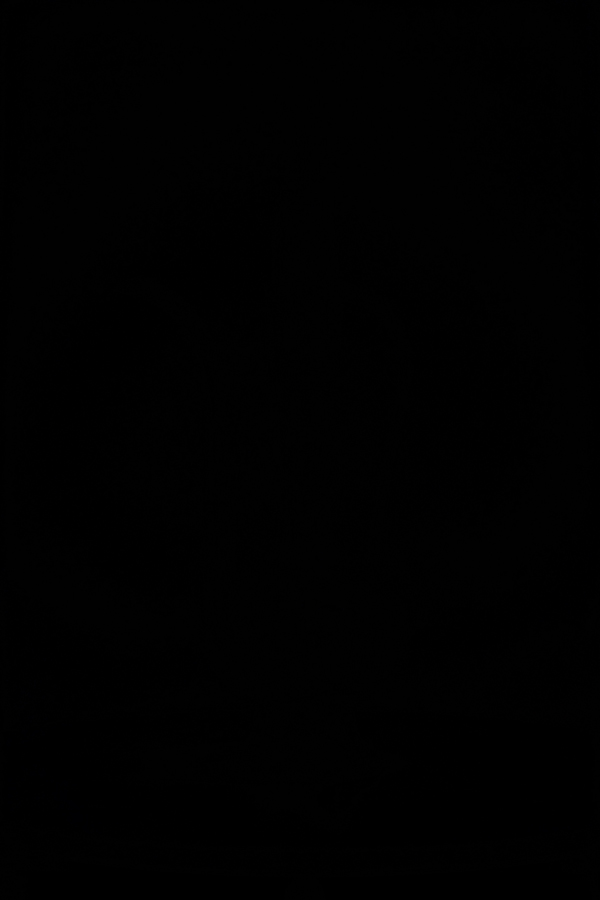

A difference mask between the two looks completely black:
Equalizing the photo reveals that data is lost - though not readily visible to the human eye:
File Size Summary:
JPG from Camera: 2.2MB
RAW from Camera: 13.7MB
TIFF from RAW: 35.6MB
JPG12 from TIFF: 3.7MB
